RT20系列刀型触头熔断器主要用于额定电压至交流500V,额定电流至1600A的配电系统中作为线路和电缆的过载保护和短路保护。
本系列熔断器能与国外符合IEC、DIN标准的同类熔断器完全互换。
Series RT20 fuses with blade contacts are mainly used in distribution net of rate voltage up to 500V a. c. and rated current up to 1600A for the protection of line and cables against all damages from fault currents between overload and rated breaking capacity. This series fuses achieve full exchangeability with similar fuses on domestic and international markets.
特色
● 特殊设计的变截面尺寸熔体,以及起“M-效应”作用的低熔点合金在位置、形状、和定量上的精确配置,降低了熔断体功率损耗,形成理想的多段保护特性。
● 高强度致密型瓷管具有极好的耐冷热剧变和抗冲击性能。
● 有较高烧结温度的高纯度石英砂作灭弧介质。
● 整体冷镦成型触刀,结构强度和导电性能良好。
● 多种形式的底座可供选择使用。
● The particular design of variable section size of the fuse-element and the accurate configuration of low melting point alloy taking metallurgic effect in respect of the position, shape, and amount have lowered the power dissipation and formed ideal protection characteristics
● The high strength dense alumina ceramic tubes have excellent performance against abrupt temperature change and resistance to impact.
● High purity quartz sand with comparatively high sintering temperature i used as arc extinguishing medium.
● The integral blade contacts are shaped with cold forging, which ha good structure strength and fine electrical conductivity
● Varies forms of fuse-base are available to meet different needs
产品详情

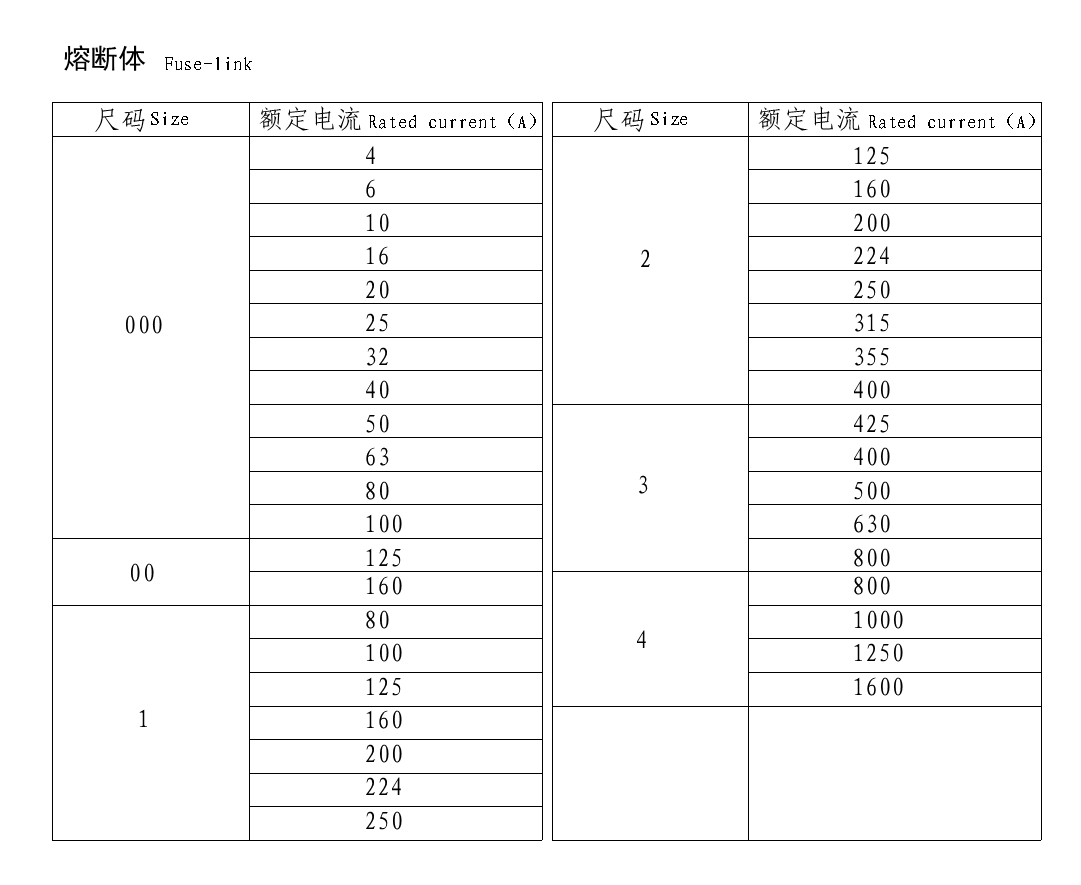

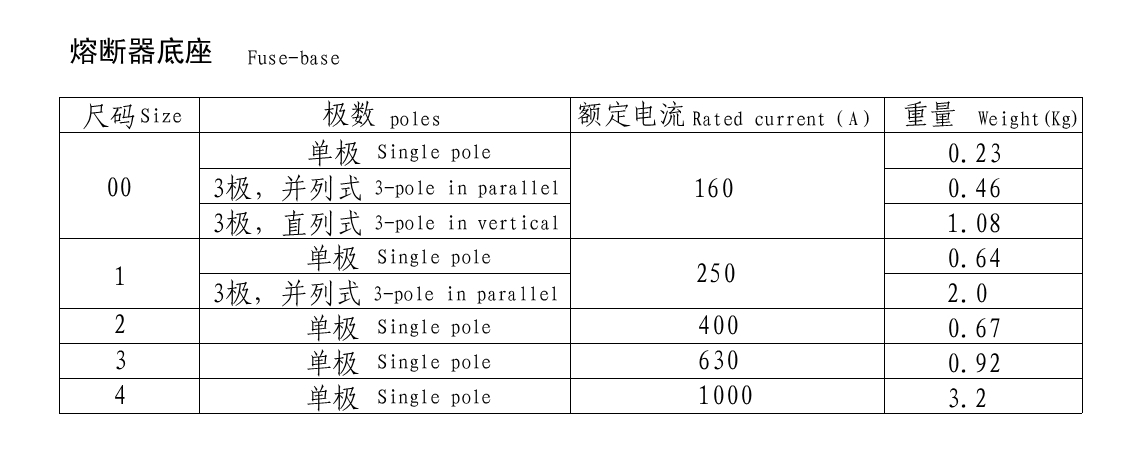

主要技术指标
型号及其含义

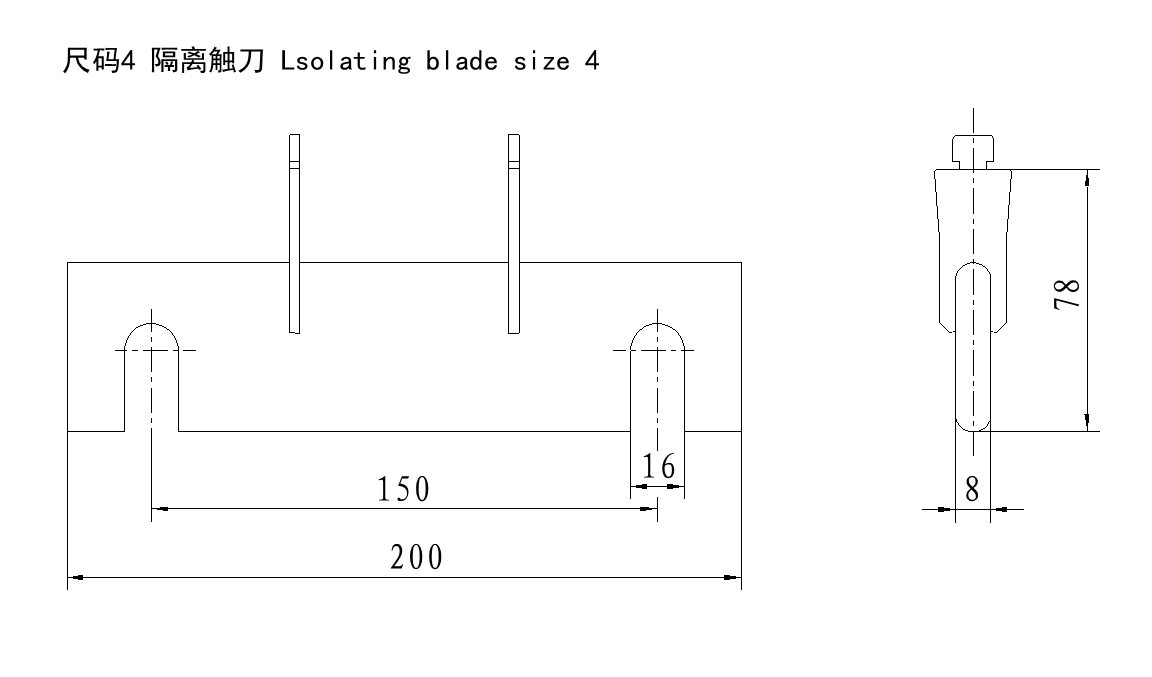

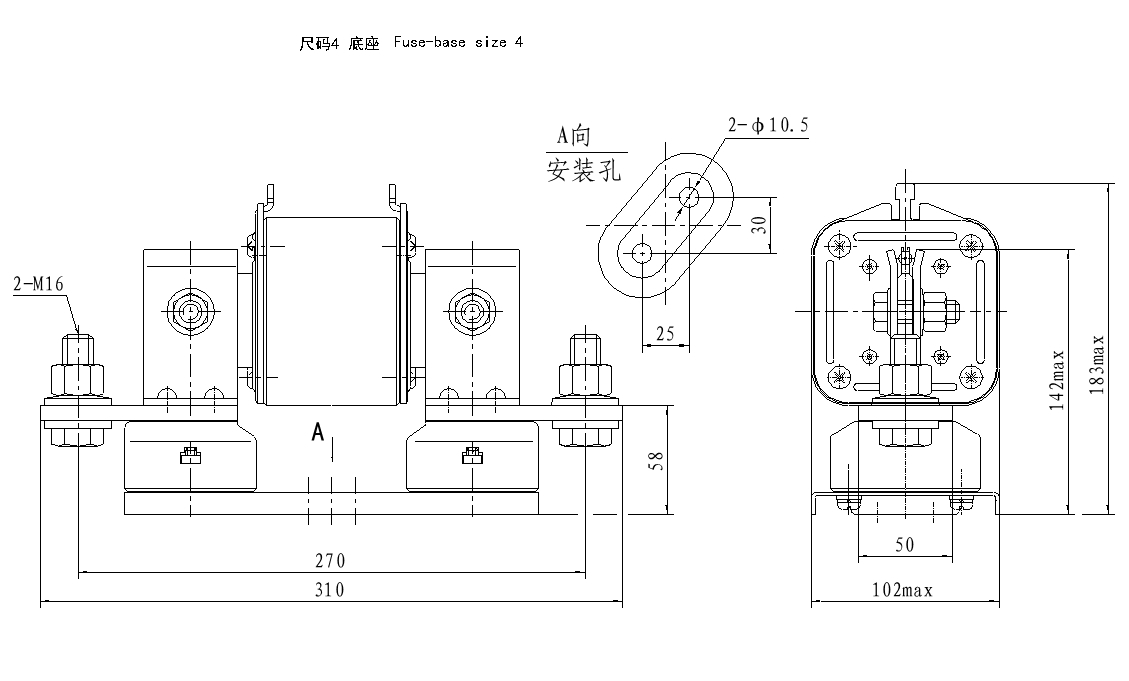

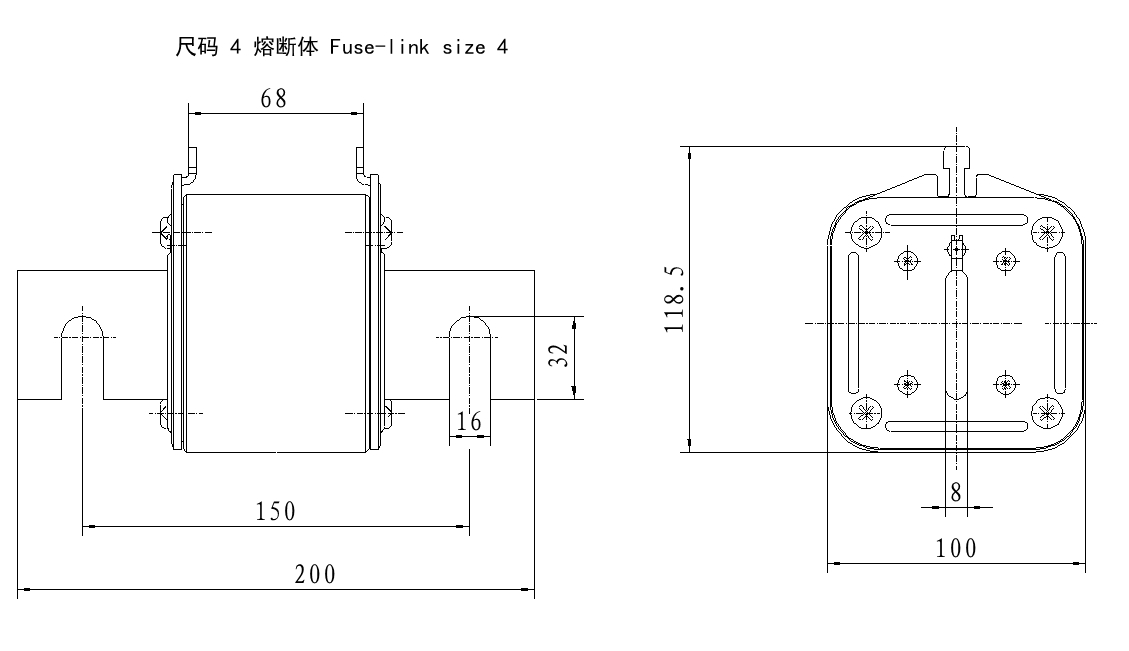

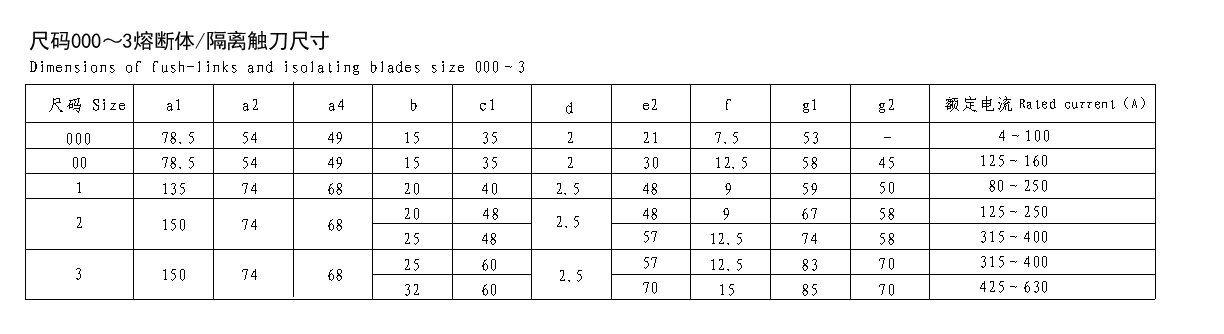

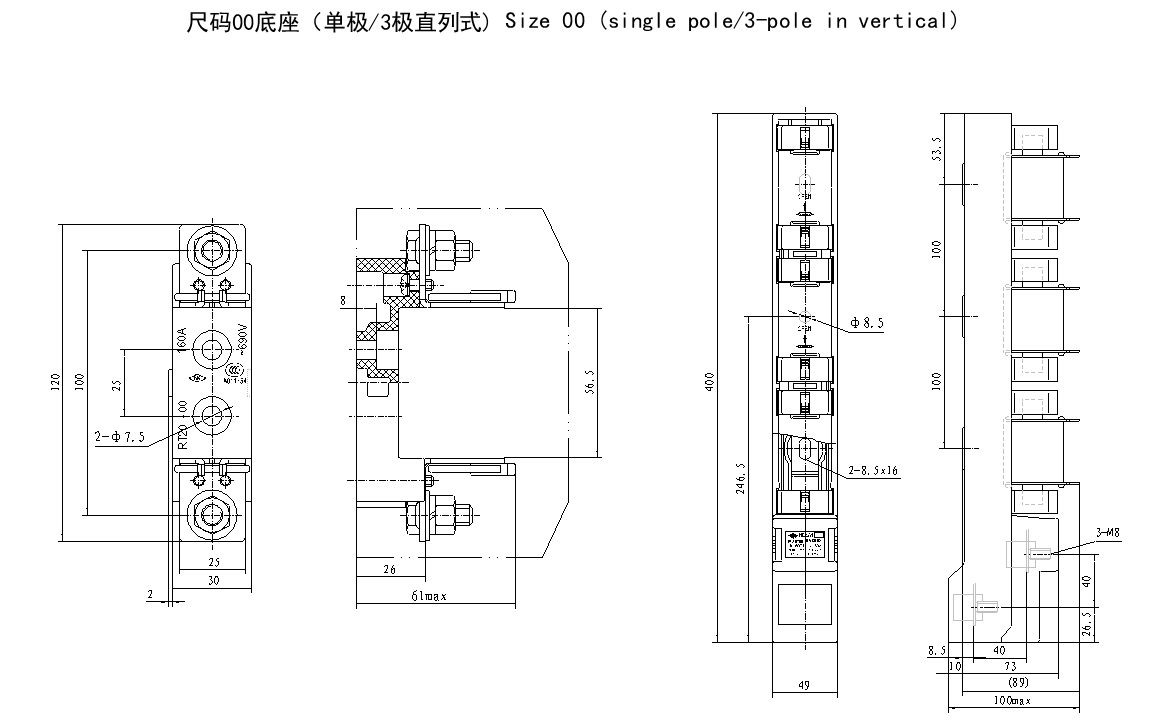

外形及安装尺寸
时间-电流特性
符合GB13539.2、IEC60269-2-1标准中的规定。
